Specifiche tecniche

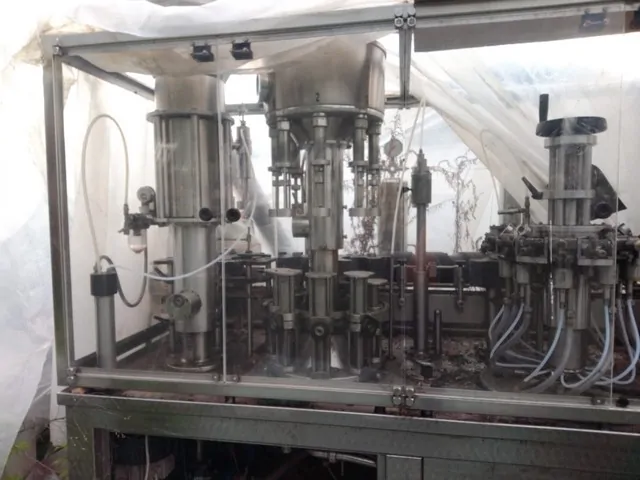

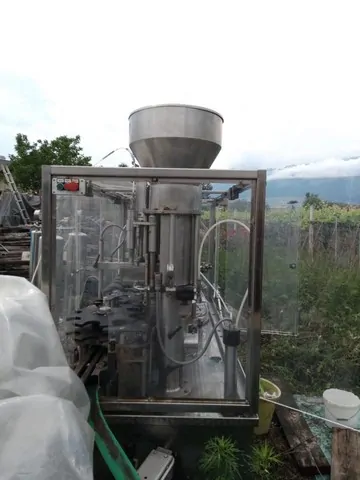

Filling Monoblock Gai 9.8.1:
Model: 1513
Year: 2000
Speed: 1,700 bph
Still wine in glass bottles
Direction: clockwise
Diameter of supported bottles: 75mm, 77mm, 82mm, 85mm
Machine composed of:
9-clamp rinser
– carousel height adjustment: manual
– fixed nozzle
– Treatment: water
Inert gas injection station
8-valve filler
– Manual tank height adjustment
– Filling type: light vacuum
– Valve type: mechanical
Single-head corker
– Head adjustment: manual
– Vacuum system before corking
– Leveler with gas injection system before corking
GENERAL DATA
Safety Protections
Available Machine Layout
