Specifiche tecniche

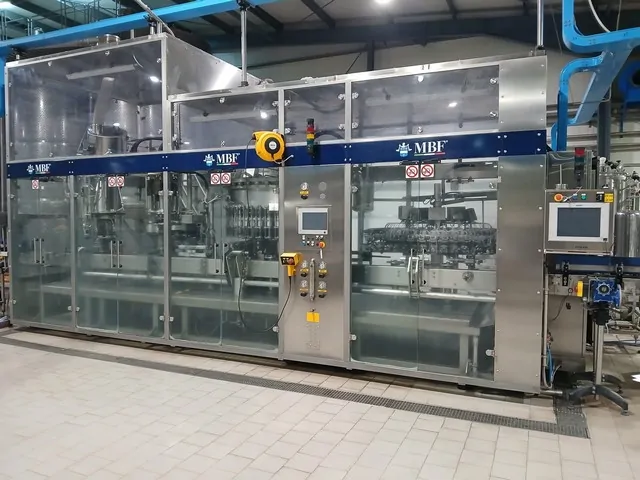

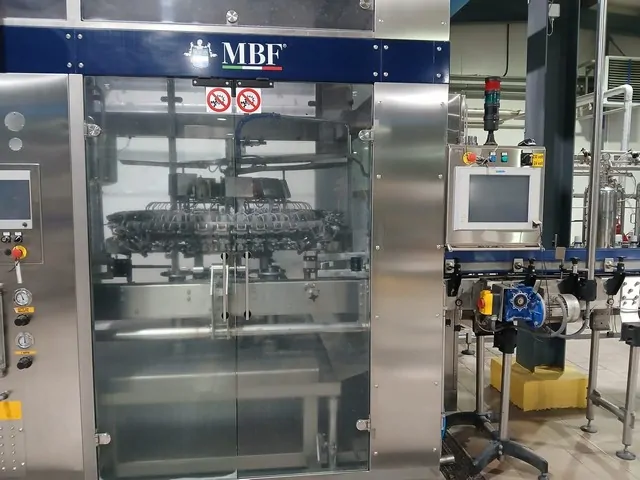

Used Complete Bottling Line MBF: Speed: 9,000 BPH with Cork cap 9,500 BPH with aluminum screw cap Ape depalletizer Model: Depal 2010 Year: 2015 Speed: 60 layers/hour Automatic operation Type of operation: by layer Workable pallet dimensions: 1200 mm x 800 mm; 1200 mm x 1000 mm Automatic layer removal system Pallet warehouse MBF triblock Model: Synchrofill 1440.40F1/1440.40LV/360.6R/360.5V Directions: Counterclockwise Rinser Single treatment 40 clamps Electric adjustment height Fixed nozzle Type of treatment: water Filler 40 valves Electric tank height adjustment Filling type: light vacuum Mechanical valve Valve functions: gas injection before filling, automatic level adjustment system by operator’s panel Corker 6 heads for natural straight corks. Cork size: minimum height 34 mm; maximum height 54 mm Electric head height adjustment Vacuum system, gas injection and 2nd vacuum before capping Corker 5 heads for aluminum screw cap Gas injection system before capping General triblock data Bottle diameters supported: minimum Ø 55 mm; maximum Ø 100 mm Minimum height: 180 mm; maximum height: 360 mm OMAR drying tunnel Model: Asco 4 Air blade drying system Robino & Galandrino capsuling machine Model: Poker z 6/12 Year: 2019 Electric head adjustment 6 thermal heads 12 rolling heads Long range storage Cavagnino & Gatti labelling machine Model: cg-cll-12-3xpsh-cf-6-mp Rotary Clockwise Electric adjustment heads 12 plates Electronic cam 3 adhesive stations No. 2 vertical unwinders Label presence control Additional ironing of outgoing bottles Ape carton erector Model: Form 3000 Closure by hot glue (Nordson) Carton dimensions: • Minimum length: 130 mm; maximum: 470 mm • Minimum width: 130 mm; maximum: 380 mm • Minimum height: 280 mm; maximum: 600 mm Carton storage capacity: 250 (depending on the thickness of the carton) Ape case packer Model: Inca 2010 Carton formats: 3×2, 4×3, 6×4 • Length: minimum 200 mm; maximum 420 mm • Width: minimum 130 mm; maximum 380 mm • Height (with open carton): minimum 250 mm; maximum 590 mm Nr. 1 adjustable head for 3×2 and 4×3 boxes (min and max bottle sizes Ø 62-108 H 200-400) Nr. 1 fixed head for 4×3 and 6×4 boxes for 187 ml Ø 52.2 bottles Ape carton closer Model: CH 2010 HM
