Specifiche tecniche

Model: Star Four Av
Year: 2004
Speed: 7000 BPH

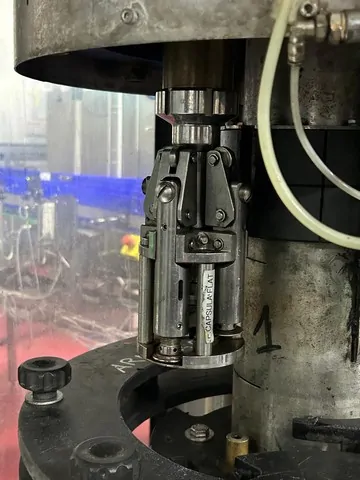

4 heads for aluminium screw cap
4 4 heads for “T” cork
Directions: clocwise
Electric adjustment height
Dimension of caps:
– Aluminum screw cap 31.5 mm x 24 mm
– Aluminum screw cap 31.5 mm x 44 mm
– “T” corks Ø Head 30 mm
Distributions system: pick & place for T corks
Bottles diameter: from Ø 62 mm a Ø 100 mm
Bottles height:
– Minimum 180 mm
– Max 330 mm
Dimension of the machine: 2400 mm x 1500 mm x 3000 mm (h)
Safety protections
Cap Elevator: Kompass
