Specifiche tecniche

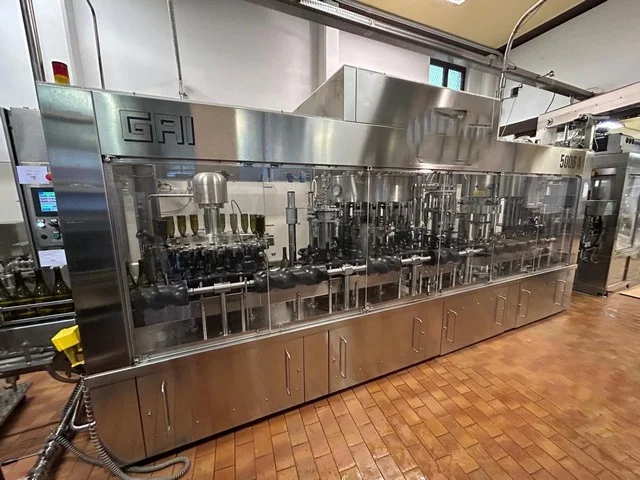

Model: 5006 A
Year: 2008
Clockwise rotation
Speed: 6,000 BPH
Washer with 20 fixed-nozzle grippers
Single treatment with water
Electric height adjustment
Water filtration system on washer inlet
Vacuum and gas injection system with 4 heads
Electric height adjustment of the vacuum system

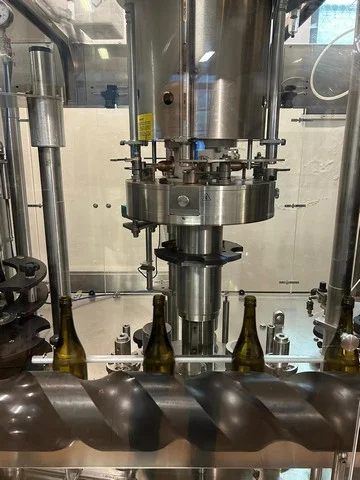

Filler with 24 electropneumatic valves operating under light vacuum
Electric height adjustment of the tank
Bottle level adjustment from the operator panel
Automatic false bottle system
Leveler with 4 heads and inert gas injection
Electric height adjustment of the leveler
Arol corker, 4 heads for flush natural cork
Vacuum and inert gas injection system before corking
Electric height adjustment of the flush corker
Mechanical cap elevator CAMES for natural cork

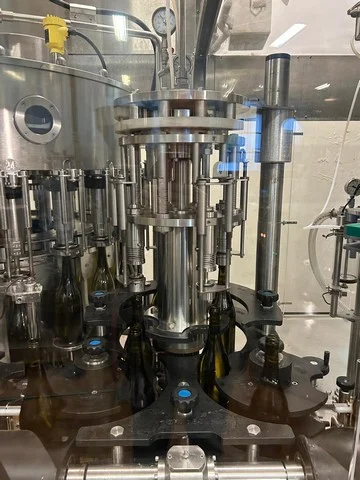

Arol screw capper, 4 heads for aluminum screw caps 30×60
Electric height adjustment
Cap presence control
Mechanical cap elevator MARMOINOX for aluminum screw caps
Touchscreen operator panel
Speed adjustment via inverter
Available bottle formats: 0.375 L, 0.75 L and 1.5 L
